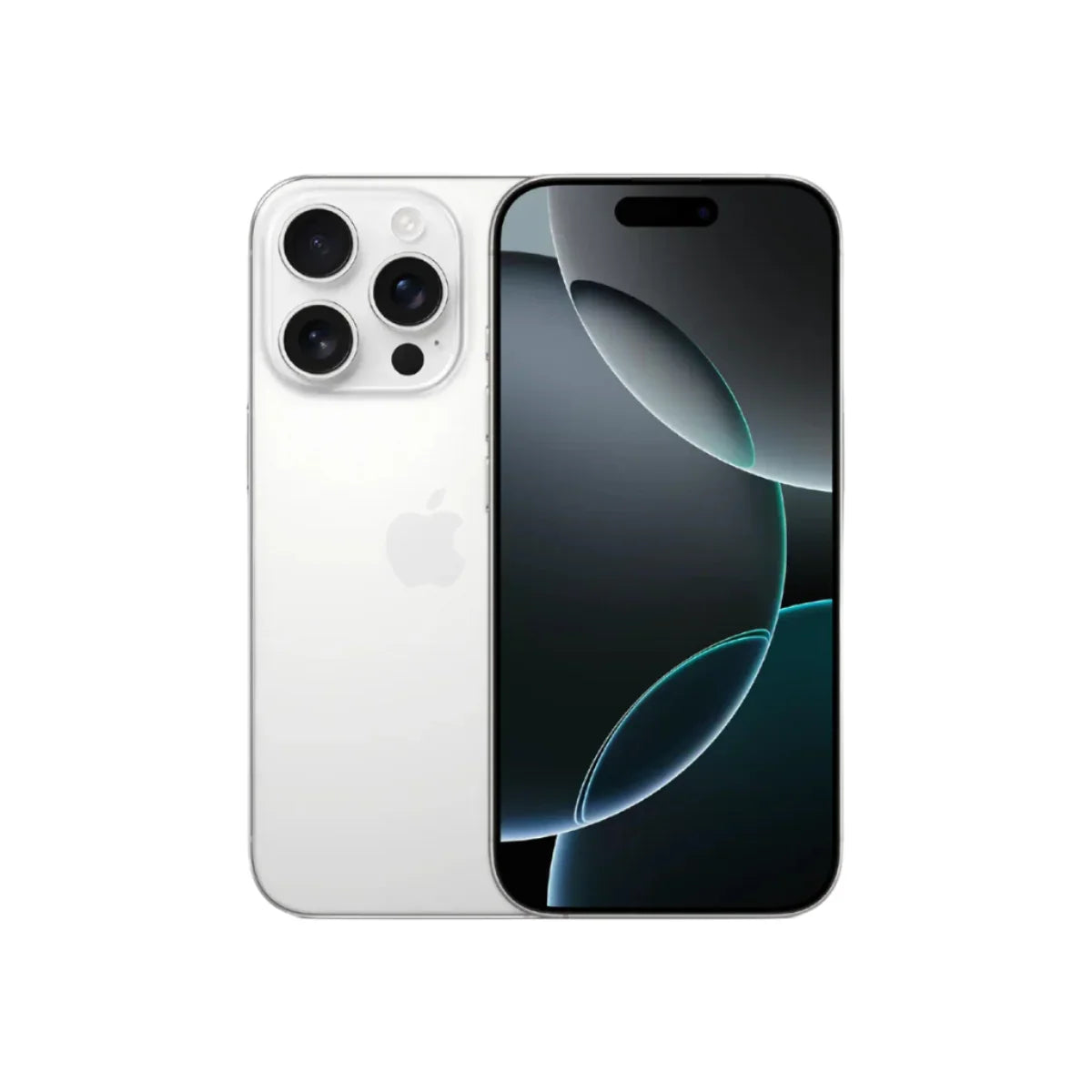

iPhone 16 Pro Max non PTA

Design & Build

• Material Options: Black Titanium, White Titanium, Natural Titanium, Desert Titanium
• Build: Latest-generation Ceramic Shield front, textured matte glass back
• Dimensions:
  • Width: 3.06 inches (77.6 mm)
  • Height: 6.42 inches (163 mm)
  • Depth: 0.32 inches (8.25 mm)
  • Weight: 7.99 ounces (227 grams)

Display

• Type: Super Retina XDR display
• Size: 6.9‑inch (diagonal) all‑screen OLED
• Resolution: 2868‑by‑1320 pixels at 460 ppi
• Features:
  • Dynamic Island
  • Always-On display
  • ProMotion technology (up to 120Hz adaptive refresh rate)
  • True Tone, HDR, Wide color (P3), Haptic Touch
  • 2000 nits peak brightness (outdoor)
  • IP68 rated (water-resistant up to 6 meters for 30 minutes)

Performance

• Chip: A18 Pro chip
  • 6-core CPU (2 performance, 4 efficiency cores)
  • 6-core GPU
  • 16-core Neural Engine

Camera System

• Main Camera:
  • 48MP Fusion (ƒ/1.78 aperture, sensor‑shift OIS)
  • 12MP 2x Telephoto (ƒ/1.6 aperture)
  • 48MP Ultra Wide (ƒ/2.2 aperture, 120° field of view)
  • 12MP 5x Telephoto (ƒ/2.8 aperture, 20° field of view, 3D sensor-shift OIS)
• Zoom:
  • 5x optical zoom in, 2x optical zoom out, 10x optical zoom range
  • Digital zoom up to 25x
• Video Recording:
  • Up to 4K at 120 fps in ProRes
  • Dolby Vision support
  • Spatial video recording

Front Camera (TrueDepth)

• Resolution: 12MP (ƒ/1.9 aperture)
• Features:
  • Photonic Engine
  • Smart HDR 5
  • Night mode, Animoji, Memoji
  • 4K Dolby Vision video recording

Connectivity

• Cellular: Supports a wide range of 5G, LTE, and GSM bands
• Wi-Fi: Wi‑Fi 7 (802.11be)
• Bluetooth: 5.3
• Ultra-Wideband: Second-generation chip
• NFC: With reader mode

Power & Battery

• Battery Life:
  • Video playback: Up to 33 hours
  • Audio playback: Up to 105 hours
• Charging:
  • MagSafe wireless charging up to 25W
  • Qi2 wireless charging up to 15W
  • USB-C with fast charge capability (50% in 30 minutes with 20W adapter)

Operating System

• OS: iOS 18

Accessibility

• Features: VoiceOver, Zoom, Magnifier, AssistiveTouch, Eye Tracking, and more.

In the Box

• iPhone with iOS 18
• USB‑C Charge Cable (1 m)
• Documentation
